Sensors that go the distance...
The Thin Door/Window Contact is designed for use on doors, windows, and other objects that open and close.. When the magnet (which is mounted near the sensor) moves away from or closer to the door contact’s sensor, signals are transmitted to the control panel.
The door contact also has an external input that accepts connections from normally-closed (NC) dry contact devices. For added protection, it is also equipped with a cover tamper to keep out prying eyes.
Features
For narrow applications, sensor is only 3/4″ wide
Fully supervised
Rare earth magnet
Supports internal and external contacts
Can be used for 2 zones of protection
Lithium battery
ETL listed
The 2GIG Recessed Door Contact is the industry’s most flexible supervised door contact. It communicates with the 2GIG Control Panel using the 345 MHz wireless frequency. It also allows a multitude of applications while hiding the transmitter within a door or window frame.
Features
Recessed Door Contact
Compact size, only 2-1/2″ long
Fully supervised
Rare earth magnet
Lithium battery
ETL listed
The Bypass Door/Window Contact is designed for use on doors that may need to be temporarily bypassed to serve as an entry and exit path to an armed zone.
A special coded message is sent to compatible receivers that can log this local user bypass event. An integrated LED indicates to the user, the state and status of the bypass feature. For higher security, the bypass push button can be disabled and the contact can be used as a micro sized door window contact without the local bypass feature.
Features
Wireless signal range: 275 ft (80 m) with 2GIG Panel
Code outputs: alarm; alarm restore; supervisory; low battery; tamper; tamper restore; local bypass enabled*; local bypass disabled*
Transmitter frequency: 345 MHz (crystal controlled)
Supervisory interval: 70 minutes
The 2GIG Passive Infrared Motion Detector is a wall-mounted unit with wide-angle motion protection.
It communicates with the control panel using the 345 MHz frequency. When set to High (HI) Sensitivity Mode, the PIR has a maximum range of 30 ft deep x 50 ft wide (9.1 m x 15.2 m). The PIR’s pet-immune feature can be set to tolerate animals up 55 lbs.
Features
Dual element sensor with 30 ft. by 50 ft. range
33 or 55 lb. pet immune
90-degree look down
110˚ spread
3 different mounting brackets
Tamper protected
Fully supervised
Lithium battery
ETL listed

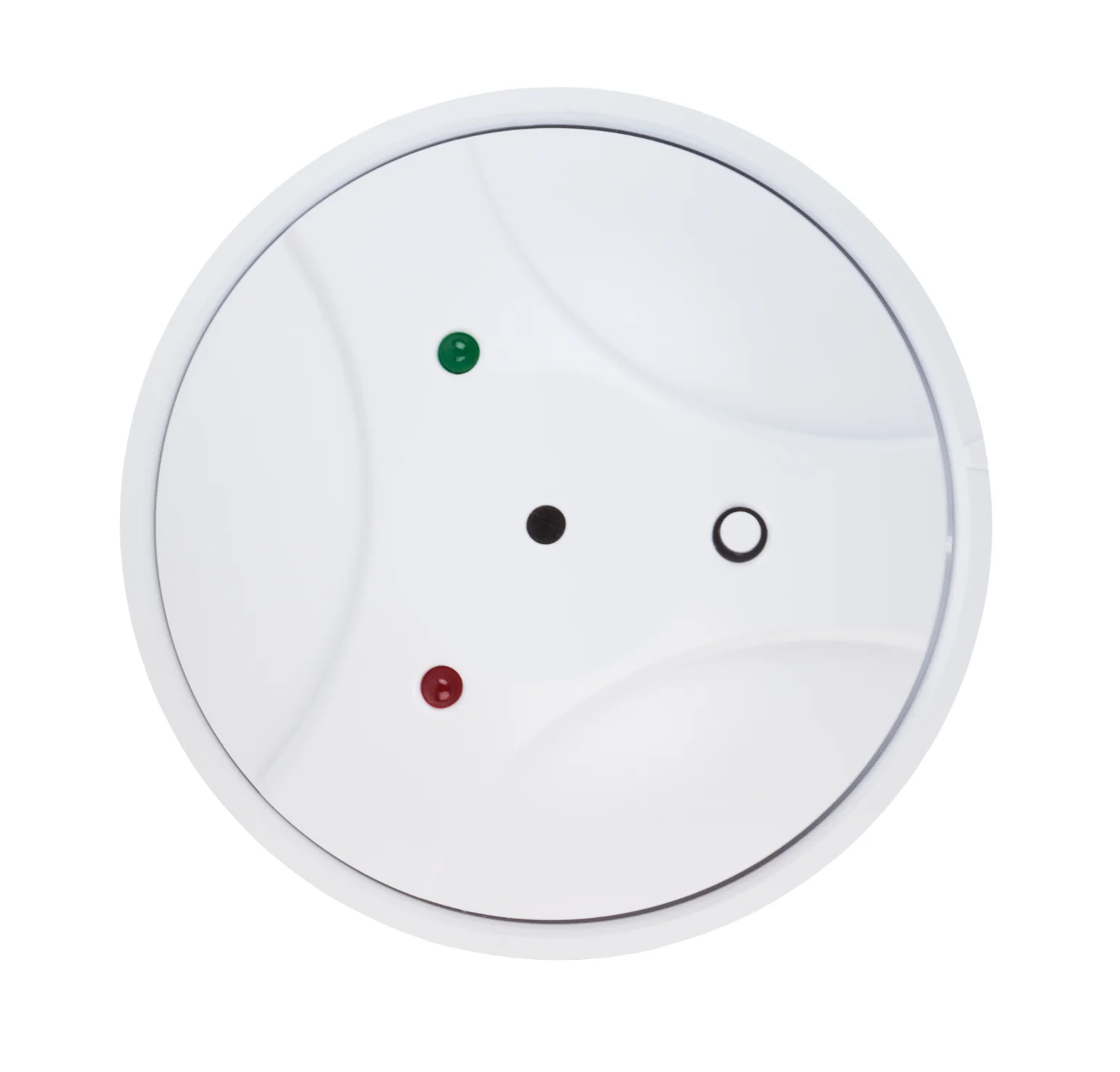

The Glass Break Detector is a fully-supervised, tamper-protected, ceiling- or wall-mounted unit. It communicates with the 2GIG Control Panel using the 345 MHz frequency. The detector provides a 15 ft (4.6 m) maximum detection range, 360° maximum horizontal sensing angle, and dual-stage glass break detection.
Features
Monitors for the sound of breaking glass
Two test LEDs
Dual shatter recognition technology
360˚ range
Tamper protected
Fully supervised
Lithium battery
ETL listed
The Image Sensor offers traditional motion detection combined with visual confirmation of why the motion sensor was activated.
Features
PIR Motion Detection
ETL certified for UL 639
Wireless connectivity for easy installation. Configurable PIR sensitivity including pet immunity
Image Capture
Resolution: 320×240 (QVGA) Color camera Night vision w/IR illumination in black and white. Receive email or MMS alerts with images attached
The 2GIG 4‐Button Keyfob Remote communicates with the 2GIG Control Panel on the 345 MHz frequency. It gives users the ability to turn the security system ON and OFF before entering the home or after exiting. If there is an emergency, you can turn on the siren and automatically call the central monitoring station. Keyfobs can be programmed to operate the programmable output in the Control Panel. Use with the 2GIG Universal Garage Door Receiver (2GIG‐GDR1‐345) to open a garage door. The keyfob is a lithium coin battery‐powered, wireless keyfob designed to fit on a key chain, in a pocket, or in a purse.
Features
Arms system in STAY or AWAY mode
Disarms system
Auxiliary output and emergency functions
Lithium Coin Battery Life of 5 Years
Resolution Products Trident Enviroment Sensor
Features
Tri-Mode Environmental Sensing:
Flood, high and low temp Freeze – for Furnace Failure – Under 40 degrees F
Overheat – for Furnace runaway or Air Conditioning failure – Over 100 Degrees F
3 unique wireless IDs or Loops: one for each function. Cover and wall tamper.
3-5x more range than competing “puck” style sensors.
5 year battery life on CR123A battery.
IP67 waterproof rating
2.43 x 2.48 x 1.17 inches
